Dynamo Polyurethane Systems

At our company, we pride ourselves on exceptional quality. From the initial concept to the final product, our attention to detail is second to none. In an ever-evolving industry, Dynamo Polyurethane Systems has set the bar for innovation and delivery.

At Dynamo we like to offer information and assistance when choosing Spray Polyurethane Foam (SPF) for your projects.

Please contact us with your questions and we will be happy to help. Please take time to look through our library of technical documents. If there is something you can't find please click here.

WHAT IS SPRAY

FOAM?

 TYPES OF SPF

Image Foam Adobe.jpeg

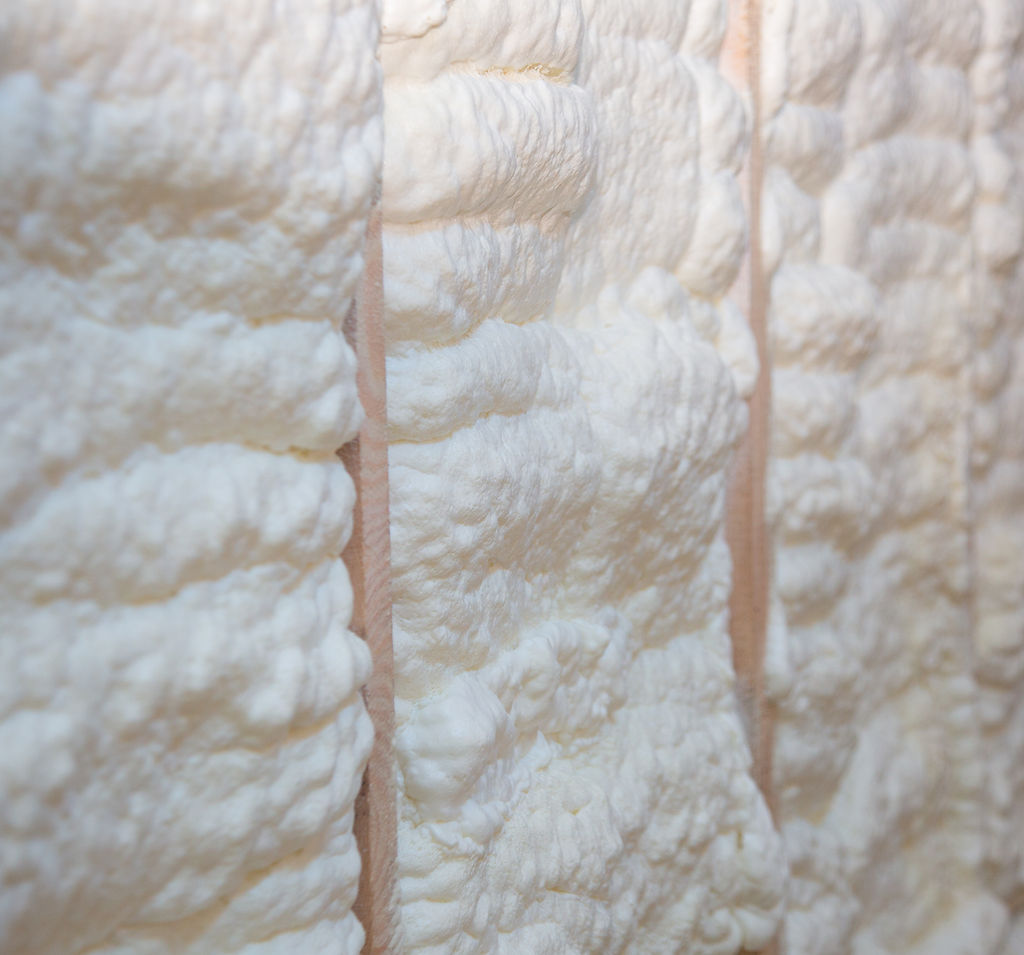

Spray Polyurethane Foam (SPF) is a spray-applied plastic that forms a continuous insulation and air sealing barrier on walls, roofs and on all contoured surfaces. It is made by mixing a liquid A component and B component under high heat and pressure at the job site to create polyurethane foam. These liquids react extremely quick when mixed, expanding on contact to create foam that not only insulates but seals gaps, and can form moisture and vapor barriers. SPF insulation is known to resist heat transfer better than any traditional insulation. It offers a highly effective solution in reducing unwanted air infiltration through cracks, seams, and joints. SPF insulation will also conform to any shape therefore no longer needing to worry about insulating a complex design.

There are three primary types of SPF that can be used for insulation and other purposes:



High Density: used for exterior and roofing applications.

Medium Density: used for insulation, coolers, unvented attics and many more applications.

Low Density: used for insulation, unvented attic applications, sound proofing.

Medium and High Density SPF are “closed-cell foams” because they use an internal closed cell structure that improves thermal resistance and other properties. Low Density SPF is called “open-cell foam” because the cell structure includes tiny holes in the cells to provide improved drying capability and flexibility.

Environment. Glass Globe On Grass Moss In Forest - Green Planet With Abstract Defocused Bo

Dyanmo ECO 2000 and ClimateGard 2000 utilize the latest in HFO blowing agents. Allowing for closed cell spray foam to achieve a low GWP (GWP = 1). Please see The American Chemistry Council's document on blowing agents used in closed cell spray foam here.

DYNAMO POLYURETHANE SYSTEMS TECHNICAL LIBRARY

Document Library
*Information sourced from American Chemistry Council, EPA, SPFA, Spray Foam Coalition
